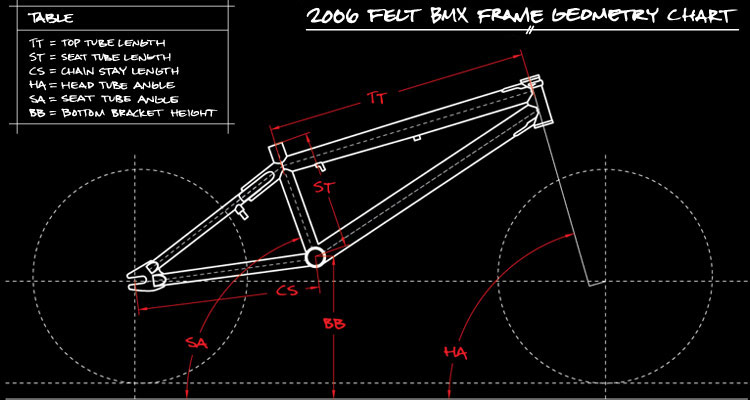

MODEL |
HA |
SA |
TT LENGTH |
ST LENGTH |
BB HEIGHT |
CS LENGTH |
SEAT POST |
ETHIC |
74 |
70 |
508 (20") |
240 (9.44") |
296 (11.6") |
362 (14.25") |
25.4 |
MYSTIC |
74 |
70 |
508 (20") |
240 (9.44") |
296 (11.6") |
362 (14.25") |
25.4 |
MANIC |
74 |
70 |
522 (20.55") |
240 (9.44") |
296 (11.6") |
362 (14.25") |
25.4 |
CHRONIC |
74 |
70 |
522 (20.55") |
240 (9.44") |
296 (11.6") |
362 (14.25") |
25.4 |
COLORS |
1.GLOSS BLACK 2.ORANGE 3.DARK GREEN |
FRAME |
CR-MO DOWNTUBE, REST HI-TEN, FS DESIGN, 20” TTL, TAPERED TOP TUBE, 6MM DROPO |
FORK |
FULL HI-TEN, 1-1/8” THREADLESS STEER TUBE, 1-3/8” BLADES, 6MM DROPOUTS |
STEM |
FS/TRAIL DESIGN, ALLOY, THREADLESS 1-1/8”, FRONT LOAD |
HANDLEBAR |
FELT “WHEELIE BAR”, 605MM WIDTH, 185 RISE, HI-TEN |
GRIPS |
FELT FS / TRAIL DESIGN, KRATON RUBBER |
HEADSET |
1 1/8” THREADLESS |
CRANKS |
FELT 3-PIECE 8-SPLINE TUBULAR HEAT-TREATED CR-MO WITH PINCH-BOLT, 175MM |
PEDALS |
FELT “BACKPEDAL” ALLOY PLATFORM |
BB SET |
LOOSE BALL USA |
CHAINRING |
FELT STEEL ONE-PIECE, NEW 39T X 1/8” |
CHAIN |
KMC Z410 1/2 X 1/8 |
FREEWHEEL |
1/2 X 1/8 BLACK 14T |
RIMS |
ALUMINUM 48H, 32MM WIDE |
HUBS |
STEEL 48H FRONT AND REAR, BLACK ED, 14MM FRONT AXLE; 14MM REAR, LOOSEBALL |
TIRES |
KENDA “KRACKPOT” DIRT / TRAIL 20 X 1.95 FT; 20 X 1.95 REAR |
SADDLE |
FELT 20” FS / JUMP SADDLE, 3-PC COVER, 8MM STEEL RAILS |
POST |
25.4MM OD STEEL TAPERED |
CLAMP |
FELT “LIGHT WEIGHT” SINGLE-BOLT ALLOY WITH STEEL NUT-BAR |
BRAKES |
LOW PROFILE MODEL TEKTRO DIE-CAST U-BRAKE |
PEGS |
2 PAIR 38MM BLACK |
DETANGLER |
SST ORYG 1-1/8” |
EXTRAS |
N/A |
